Adhesive Tapes

PVC Wire harness Tape

Material: PVC
Use: Wrapping wires
Color: Custom
Size: Custom
Product description: PVC Wire harness Tape
INQUIRY EMAIL

Properties: PVC film made with DINP plasticizer coated with an water-based acrylic adhesive, good characteristics of insulation, voltage resistance, low temperature resistance. Meet ROHS, Reach and low VOC requirements.

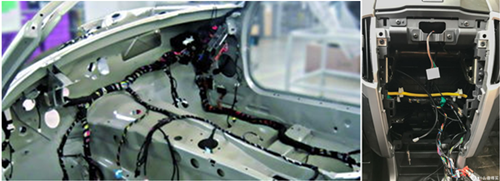

Application: This product is specially designed for automobile wire harness. Wrapping wires with a half-lap is the best. The last layer should not be pulled too much to prevent flagging.

Technical Data:

Properties	Unit	Typical Data
Total Thickness	mm	0.100
Tensile Strength	N/cm	15
Elongation	%	150
Adhesion Strength ·to steel ·to Backing	N/cm N/cm	1.0 1.0
Dielectric Breakdown	V	600
Temperature Resistance	°C	120
Flame Resistance	S	2
